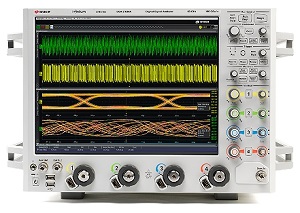

Keysight DSAZ634A 63GHz Z-Series Oscilloscope
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- Nothing says "cutting edge" more clearly than the Keysight DSAZ634A: it has two channels of 63 GHz, a fast and responsive 160 GSa/s sample rate, deep memory (up to 2 Gpts per channel), and a 30 GHz probing system.
Key features
- Real-time bandwidth: 63 GHz (2CH) and 33 GHz (4CH)
- Maximum sampling rate: 160 GSa/s (2CH), 80 GSa/s (4CH)
- Memory depth is 100M standard; 2 Gpts maximum
- Removable 500 GB SSD Drive
- Standard RAM is 16 GB
| Technical characteristics | |
| Typical analog bandwidth (3 dB) | 63 GHz |
| Sample rate | 2-channel: 160 GSa/s 4-channel: 80 GSa/s |
| Memory depth | Standard: 100M Maximum: 2 Gpts |
| Input impedance | 50 Ω ± 3% |
| Sensitivity | 1 mV/div to 1 V/div |
| Input coupling | DC |
| Vertical resolution | 8 bits, ≥ 12 bits with averaging |
| DC gain accuracy | ± 2% of full scale at full resolution channel scale (± 2.5% for 5 mV/div) |
| Maximum input voltage | ± 5 V for steady state and transient measurements |
| Dynamic range | ± 4 div from center screen |
| Display characteristics | |
| Display | 15.4-inch color XGA TFT-LCD with capacitive touch screen |
| Intensity grayscale | 256 level intensity graded display |
| Resolution XGA | 1024 pixels horizontally x 768 pixels vertically |
| Annotation | Up to 12 labels, with up to 100 characters each, can be inserted into the waveform area |
| Grids | Choose between 1-16 grids per waveform area, 8 bit vertical resolution |
| Waveform styles | Connected dots, dots, infinite persistence, color graded infinite persistence. Includes up to 256 levels of intensity-graded waveforms, variable persistence |
| Waveform area | Supports eight waveform areas plus chart mode for EZJIT Plus, InfiniiSim, protocol, and PrecisionProbe |
| Maximum update rate | > 400,000 waveforms per second (when in the segment memory mode) |
| General characteristics | |
| Temperature | Operating: +5 %C to +40 %C Non-operating: -40 %C to +65 %C |
| Humidity | Operating: Up to 95% relative humidity (non-condensing) at +40 °C Non-operating: Up to 90% relative humidity at +65 °C |
| Altitude | Operating: Up to 4,000 meters (12,000 feet) Non-operating: Up to 15,300 meters (50,000 feet) |
| Power | 100 to 240 VAC ± 10% at 50/60 Hz Maximum input power 1350 W Well-regulated power is required for 100 to 120 VAC operation |
| Dimensions | Height: 33.8 cm (13.3 in) Width: 50.8 cm (20 in) Depth: 49.3 cm (19.4 in) |
| Weight | 71 lbs (32.2 kg) |
| Safety | CAN/CSA-C22.2 No. 61010-1-04 UL Std. No. 61010-1 (2nd Edition) |
| For detailed specifications please see: Keysight DSAZ634A Data Sheet | |
