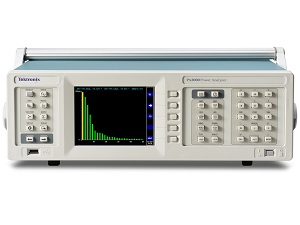

Tektronix PA3000 Power Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Tektronix PA3000 is an ideal 1 to 3-phase power analyzer for testing high efficiency power supplies, LED drivers, home appliances, inverters, and drives. It can analyze and document true power, power factor, efficiency, energy consumption, and harmonics to the latest regulatory standards, such as Level VI, Energy Star, CEC, IEC 62301 and more.
Key features
- Remotely monitor, analyze, and log results
- Wide 1 MHz bandwidth for high frequency harmonics
- Default Applications menu for easy setup
- View waveforms, harmonic graphs and trend charts
| Required testing scenario | Suggested Options/Applications |
|---|---|
| IoT - Signal & Power Integrity | The Tektronix PA3000 Power Analyzer can be used to assess Signal & Power Integrity. No options are required. |
| Internet of Things (IoT) - EMC | n/a |
| Internet of Things (IoT) - Wireless Standards Compliance | n/a |
| Internet of Things (IoT) - Power Management | n/a |
| Communications | |
|---|---|
| EEE-488 (Option) | IEEE Std 488.1 compliant |
| RS-232 | Baud rates from 9600 bps, 19200 bps (default), and 38400 bps 8 bit, No parity, 1 stop bit, hardware flow control 9 pin male D-type connector |
| Ethernet | IEEE 802.3 compatible, 10Base-T RJ-45 connector with Link and Activity indicators TCP/IP connection on port 5025 |
| USB device | USB 2.0 compatible, Full speed (12 Mb/sec) |
| General | |
| EMC | Conforms to European Union EMC directive |
| Safety | Conforms to European Union Low Voltage directive |
| Temperature | Operating 0 °C to 40 °C (32 °F to 104 °F), 70% relative humidity up to 31 °C (87.8 °F) Storage -25 °C to 65 °C (-13 °F to 149 °F) |
| Altitude | Up to 2000 m (6562 ft) above sea level |
| Power supply | 100 V to 240 VAC, 50 Hz or 60 Hz, 120 VA maximum |
| Power consumption | 1440 VA |
| Dimensions | With handle and feet (14.6 H x 45 W x 33.5 D)cm (5.75 x 17.75 x 13.2)in. Without handle and feet (13.2 H x 42 W x 33.5 D)cm (5.2 x 16.5 x 13.2)in. |
| Weight | 9.5 kg (20.9 lb) - 4 channel instrument with GPIB option installed |
