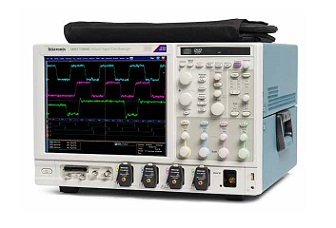

Tektronix MSO72304DX 23GHz Mixed Signal Oscilloscope
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Tektronix MSO72304DX 23 GHz Oscilloscope provides exceptional signal acquisition performance and analysis throughout the design cycle, from prototype turn-on to production testing.
Key features
- 23 GHz analog bandwidth and 13 ps rise time
- True 23 GHz real-time analog bandwidth on 4 channels
- Max waveform capture rate > 300,000 wfms/s per channel
- Sample rate: 100 GS/s on 2 channels
- Up to 500 megasample record length
| Technical characteristics | |
| Analog bandwidth (-3 dB) | 2 channels: 23 GHz 4 channels: 23 GHz |
| Number of channels | Analog: 4 channels Digital: 16 channels |
| Hardware analog bandwidth (-3 dB) | 23 GHz |
| Rise time (typical) | 10% to 90%: 17 ps 20% to 80%: 13 ps |
| Sample rate (1, 2 ch) | 100 GS/s Maximum sample rate is 50 GS/s on digital channels routed to an analog channel through the iCapture™ analog mux. |
| Sample rate (3, 4 ch) | 50 GS/s |
| Sample rate (ET/IT mode) | 10 TS/s |
| Timing resolution | 10 ps (100 GS/s) |
| Jitter noise floor, typical (with BWE enabled) | < 380 fs |
| DC gain accuracy | ± 2% of reading |
| Signal-to-Noise ratio (typical) | 34 dB |
| Input coupling | DC (50 Ω), GND |
| Input resistance selection | 50 Ω ± 3%, 1 MΩ with TCA-1MEG adapter |
| Display system | |
| Color palettes | Normal, Green, Gray, Temperature, Spectral, and User-defined |
| Formats | YT, XY, XYZ |
| Display resolution XGA | 1024 horizontal x 768 vertical pixels |
| Display type | 307.3 mm (12.1 in.) liquid-crystal active-matrix color display |
| Horizontal divisions | 10 |
| Vertical divisions | 10 |
| Waveform styles | Vectors, Dots, Variable Persistence, Infinite Persistence |
| General characteristics | |
| Temperature | Operating: +5 %C to +45 %C Non-operating: -20 %C to +60 %C |
| Humidity | Operating: 8% to 80% relative humidity (RH) at up to 32 °C Above +32 °C up to +45 °C; as limited by a 29.4 °C wet bulb temperature Non operating: 5% to 95% relative humidity (RH) Above +32 °C up to +60 °C; as limited by a 29.4 °C wet bulb temperature |
| Altitude | Operating: Up to 3,000 meters (9,843 feet) Non-operating: Up to 12,000 meters (39,370 feet) |
| Power | 100 to 240 VRMS, ± 10%, 50/60 Hz; 115 VRMS ± 10%, < 870 W, 400 Hz; CAT II, < 1100 VA typical |
| Dimensions | Height: 29.8 cm (11.74 in) Width: 45.1 cm (17.75 in) Depth: 49.9 cm (19.29 in) |
| Weight | Net: 24 kg, (53 lb) Shipping: 34 kg (67 lb) |
| Regulatory | Electromagnetic compatibility: 2004/108/EC; EN 61326-2-1:2006 Certifications: UL 61010-1, CSA 61010-1-04, LVD 2006/95/EC, EN61010-1, IEC 61010-1 |
| For detailed specifications please see: Tektronix MSO/DPO 70000 Series Data Sheet | |
