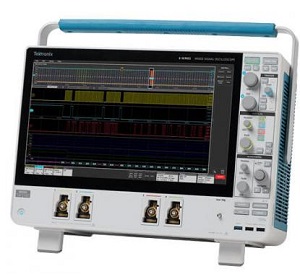

Tektronix MSO64 Mixed Signal Oscilloscope
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The 6 Series MSO can troubleshoot and validate high-speed designs now and into the future with upgradeable bandwidth that starts at 1 GHz and goes up to 8 GHz, with low noise, and 25 GS/s sample rate per channel.
Key features
- Bandwidth 1, 2.5, 4, 6, or 8 GHz; upgradeable
- The FlexChannel inputs provide 4 analog or 32 digital channels
- Sample Rate is 25 GS/s on all analog/digital channels
- Up to 250 Mpoints on all analog/digital channels
- Optional (and upgradeable) Signal Generator
| Technical characteristics | |
| FlexChannel Inputs | 4 |
| Maximum analog channels | 4 |
| Maximum digital channels (with optional logic probes) |
32 |
| Bandwidth (calculated rise time)) | 1 GHz (400 ps), 2.5 GHz (160 ps), 4 GHz (100 ps), 6 GHz (66.67 ps), 8 GHz (50 ps) |
| DC Gain accuracy (50 Ω) | ± 2.0% at > 2 mV/div (± 2.0% at 2 mV/div typical, ± 4% at 1 mV/div typical) ± 1.0% of full scale at > 2 mV/div, (± 1.0% of full scale at 2 mV/div typical, ± 2% at 1 mV/div typical) |
| DC Gain accuracy (1 MΩ) | ± 2.0%1 at > 2 mV/div (± 2% at 2 mV/div, ± 2.5% at 1 mV/div typical and 500 μV/div typical) ± 1.0% of full scale at > 2 mV/div, (± 1.0% of full scale at 2 mV/div typical, ± 1.25% at 1 mV/div and 500 μV/div, typical) |
| ADC Resolution | 12 bits |
| Vertical Resolution | 8 bits @ 25 GS/s; 8 GHz on all channels 12 bits @ 12.5 GS/s; 4 GHz on all channels 13 bits @ 6.25 GS/s (High Res); 2 GHz on all channels 14 bits @ 3.125 GS/s (High Res); 1 GHz on all channels 15 bits @ 1.25 GS/s (High Res); 500 MHz on all channels 16 bits @ ≤ 625 MS/s (High Res); 200 MHz on all channels |
| Sample rate | 25 GS/s on all analog / digital channels (40 ps resolution) |
| Record Length | 62.5 Mpoints on all analog / digital channels, 125 Mpoints on all analog / digital channels optional, and 250 Mpoints on all analog / digital channels optional |
| Waveform Capture Rate | > 500,000 wfms/s (Peak Detect, Envelope acquisition mode) > 30,000 wfms/s (all other acquisition modes) |
| Arbitrary/Function Generator (opt.) | 13 predefined waveform types with up to 50 MHz output |
| Display | |
| Display type | 15.6 in. (395 mm) liquid-crystal TFT color display |
| Display resolution | 1,920 horizontal x 1,080 vertical pixels (High Definition) |
| Display modes | Overlay: traditional oscilloscope display where traces overlay each other Stacked: display mode where each waveform is placed in its own slice and can take advantage of the full ADC range while still being visually separated from other waveforms. Groups of channels can also be overlaid within a slice to simplify visual comparison of signals. |
| Zoom | Horizontal and vertical zooming is supported in all waveform and plot views. |
| Interpolation | Sin(x)/x and Linear |
| Waveform styles | Vectors, dots, variable persistence, and infinite persistence |
| Graticules | Movable and fixed graticules, selectable between Grid, Time, Full, and None |
| Color palettes | Normal and inverted for screen captures Individual waveform colors are user-selectable |
| Format | YT, XY, and XYZ |
| General specifications | |
| Temperature | Operating: 0 %C to +50 %C Non-operating: -20 %C to +60 %C |
| Humidity | Operating: 5% to 90% relative humidity (% RH) at up to +40 °C Non operating: 5% to 90% relative humidity (% RH) at up to +60 °C, noncondensing |
| Altitude | Operating: Up to 3,000 meters (9,843 feet) Non-operating: Up to 12,000 meters (39,370 feet) |
| Source voltage | 100 to 240 V ± 10% at 50 Hz to 60 Hz 115 V ± 10% at 400 Hz ± 10% |
| Power consumption | 400 Watts maximum |
| Dimensions | Height: 12.2 in (309 mm), feet folded in, handle to back Height: 14.6 in (371 mm) feet folded in, handle up Width: 17.9 in (454 mm) from handle hub to handle hub Depth: 8.0 in (205 mm) from back of feet to front of knobs, handle up Depth: 11.7 in (297.2 mm) feet folded in, handle to the back |
| Weight | < 28.4 lbs (12.88 kg) |
| Regulatory | CE marked for the European Union and UL approved for the USA and Canada RoHS compliant |
| For detailed specifications please see: Tektronix MSO 64 Series Data Sheet | |
