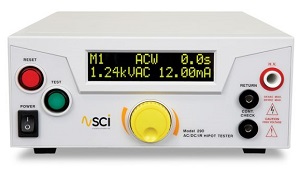

SCI 296 5 kV AC / 6 kV DC Hipot Tester
Best in class 5-Year Warranty! Currently in stock. Get a quick quote!
Application
- The SCI 296 generates 5 kV AC at 12 mA and 6 kV DC at 5 mA. It tests DUTs that include appliances, powered products, cables & components, lighting & LED testing, modular homes, and motors & pumps.
Key features
- Hipot Testing: 5 kV AC at 12 mA / 6 kV DC at 5 mA
- Resolution: 0.01 kV; Accuracy: ± (1.5% of setting + 5V)
- Input: 100 to 120 VAC / 200 to 240 VAC, Auto Range
- Input frequency is 50/60 Hz ± 5%
- AC waveform: Sine Wave, Crest Factor = 1.3 - 1.5
| Input specifications | |
| Voltage | 100 to 120 VAC / 200 to 240 VAC ± 10%, Auto Range |
| Frequency | 50/60 Hz ± 5% |
| Fuse | 3.15 A, 250 VAC Fast Blow |
| Dielectric Withstand Test Mode | |
| Output rating | AC Range: 0 to 5.00 kV AC, 12.00 mA DC Range: 0 to 6 kV DC, 5 mA |
| Voltage setting | 0 to 5.00 kV AC, 0 to 6 kV DC Resolution: 0.01 kV Accuracy: ± (1.5% of setting + 5V) |
| Output frequency | DC and 50/60 Hz Selectable |
| AC Waveform | Sine Wave, Crest Factor = 1.3 - 1.5 |
| DC Output Ripple | < 5% (6 kV DC / 5mA at Resistive Load) |
| Dwell Timer | Range: 0, 0.2 to 60 sec (0=Continuous), 0.1 sec/step |
| Ramp Timer | 0.2 to 180 sec, 0.1 sec/step |
| Leakage Failure Settings | AC Hi-Limit: 0.10 to 12.00 mA Lo-Limit: 0 to 12.00 mA Resolution: 0.01 mA Accuracy: ± (2% of reading + 0.02 mA) |
| Discharge time | < 50 msec for no load, < 100 msec for capacitive load |
| General specifications | |
| Standard Accessories | Return Lead 6 ft. (1.8m) High Voltage Lead 6 ft. (1.8m) Input Power Cable USA Interlock Connector |
| Options available | Rear Outputs USB Port 10 Memory 3 mA Current Limit |
| Continuity Feature | Range: 0.0 - 1.50 Ω Resolution: 0.01 Ω Accuracy: ± (2% of setting + 0.02 Ω) |
| Memories | 5, (10 optional) |
| Remote I/O | Input: Test, Reset, Interlock Output: -Pass, Fail, Test-in-Process Hardware Interlock: - a relay on the high voltage output opens when the Interlock signal is disabled |
| 3 mA AC/DC Current Limit (Optional) |
Range: 0.00 to 3.00 mA Resolution: 0.01 mA Accuracy: ± (2% of setting + 0.02 mA) |
| Meter Max (Standard) |
Displays the maximum voltage value recorded during a breakdown |
| Imax (Optional) |
Displays the maximum leakage current value read during a test. Option 3 (USB port) must be installed to receive this measurement |
| Security | Option to turn On or Off, when On you can switch between two security levels: 1) Run - Operator can only run a test. No ability to change memory locations or edit test parameters 2) Mem - Operator can run a test and change memory locations. No ability to edit test parameters |
| Safety Mark | CE/cTUVus |
| Dimensions | (W x H x D) (8.5 x 3.5 x 11.9)in. (215 x 88.1 x 300mm) |
| Weight | 12 lbs (5.46 kg) |
| For detailed specifications please see: SCI 296 Data Sheet | |
