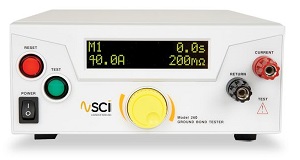

SCI 264 40 Amp AC Ground Bond Tester
Best in class 5-Year Warranty! Currently in stock. Get a quick quote!
Application
- The SCI 264 Ground Bond Tester has an intuitive interface that allows test set-up in seconds with practical security settings. It can easily be deployed in both laboratory and production line environments.
Key features
- Output current range: 3A to 40A AC
- Resolution: 0.1 A, accuracy: ± (2% of setting + 0.1A)
- Safeguard workstation with PPE accessories
- Milliohm offset function for accurate results
- Easily automate for data collection
| Input specifications | |
| Voltage | 100 to 120 VAC / 200 to 240 VAC ± 10%, Auto Range |
| Frequency | 50/60 Hz ± 5% |
| Fuse | 10 A, 250 VAC Slow Blow |
| Ground Bond Test Mode | |
| Output rating | Range: 3.0 to 40.0 AAC Resolution: 0.1 A Accuracy: ± (2% of setting + 0.1A) Voltage: 8 VAC (fixed) |
| Output frequency | 50/60 Hz user selectable Accuracy: ± 0.1% |
| Resistance Limit Settings | 0 - 150 mΩ for 30.1 - 40.0 A 0 - 200 mΩ for 10.1 - 30.0 A 0 - 600 mΩ for 3.0 - 10.0 A Resolution: 1 mΩ Accuracy: ± (2% of setting + 2 mΩ) |
| Offset Limit Settings | 0 - 100 mΩ Resolution: 1 mΩ Accuracy: ± (2% of setting + 2 mΩ) |
| Dwell Timer | 0, 0.5 - 240.0 sec, (0=continuous), 0.1 sec/step |
| Ramp Timer | 0.1 sec, fixed |
| Measurement Current | 0.0 - 40.0 AAC Resolution: 0.1 A Accuracy: ± (3% of reading + 0.1 A) |
| Ohmmeter | 0 - 600 mΩ Resolution: 1 mΩ Accuracy: ± (3% of reading + 3 mΩ) for 3 - 5.9 A ± (2% of reading + 2 counts) for 6 - 40 A |
| General specifications | |
| Standard Accessories | 40 Amp High Current Lead 6 ft. (1.8m) 40 Amp High Current Return Lead 6 ft. (1.8m) Input Power Cable USA Fuse 10 Amp |
| Options available | Rear Outputs USB Port Display Voltage Drop |
| Memories | 5 |
| Remote I/O | Input: Test, Reset, Interlock Output: -Pass, Fail, Test-in-Process Hardware Interlock: - a relay on the high voltage output opens when the Interlock signal is disabled |
| Voltage Drop Display (Optional) |
Display the voltage drop across the circuit instead of the resistance measurement |
| Voltage Limit Settings | 0.00 to 6.00 VAC Resolution: 0.01 V Accuracy: ± (2% of setting + 0.02 V) |
| Offset Limit Settings | 0.00 to 4.00 VAC Resolution: 0.01 V Accuracy: ± (2% of setting + 0.02 V) |
| Security | Option to turn On or Off, when On you can switch between two security levels: 1) Run - Operator can only run a test. No ability to change memory locations or edit test parameters 2) Mem - Operator can run a test and change memory locations. No ability to edit test parameters |
| Safety Mark | CE/cTUVus |
| Dimensions | (W x H x D) (8.5 x 3.5 x 11.81)in. (215 x 88 x 300mm) |
| Weight | 9.25 lbs (4.3 kg) |
| For detailed specifications please see: SCI 264 Data Sheet | |
