Schaffner NSG438 ESD Simulator
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Features of NSG438
- The instrument comprises a base unit, discharge pistol, mains adapter and battery charging unit.
- Power Supply: Battery or mains operation (100 to 240 VAC)
- Discharge Voltage: 200V to 30kV for air and contact discharge
- Pulse Polarity: Positive, negative automatic swithching.
- Pulse Counter forwards or backwards up to 9999 pulses.
- Touch-Panel Display: Back-lit display with touch-sensitive control surfaces.
| Instrument type | ESD generator consisting of a base unit, discharge pistol, mains adapter and battery charging unit |
|---|---|
| Power supply | Battery or mains operation (100 - 240Vac) |
| Base unit | High voltage generator; microprocessor-based controller, optical PC interface, interlock, input/outputs for end of test, EUT-fault |

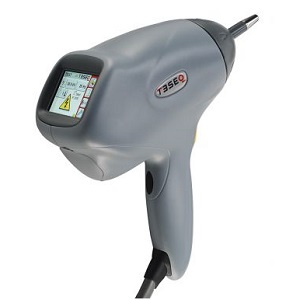

| Discharge pistol | Operating unit with touch-sensitive display panel, exchangeable test probes and networks, trigger button |
| Pulse specifications | IEC/EN 61000-4-2 with standard network (150pF/330&Omrga;) ISO 10605 with network INA 4381 (150pF/2k&Omrga;) and INA 4382 (330pF/2k&Omrga;) Others according to requirements |
| Discharge voltage | 200V to 30kV for air discharge and contact discharge, programmable in 100V steps |
| Pulse polarity | Positive, negative, automatic switching |
| Pulse repetition | Single pulse; continuous at 0.5, 1, 5, 10, 20 & 25Hz; statistical distribution in 2 modes |
| Voltage measurement | Dynamic discharge voltage measurement in air discharge mode |
| Discharge detection | With adjustable threshold |
| Pulse counter | Forward pulse counter or backward as a preset counter, up to 9999 pulses |
| Pulse triggering | Trigger-button, or remote control signal |
| Touch-panel display | Back-lit display with touch-sensitive control surfaces and a virtual thumbweel, used to monitor
and set up all the instrument's functions: Discharge voltage, type of discharge, polarity, repetition rate, counter/preset counter, memory, language, instrument status, detector threshold, etc. |
| Test program memory | Preset test data to IEC, ISO or other standards Store and recall of 8 complete user defined tests |
| Weight | Base unit: 6.5 kg; Discharge pistol (w/o cable) 1.2 kg |
| Environmental conditions | 5 to 40°C (40 to 105°F); 20 to 80% rh (non condensing); 68 to 106kPa |
| Certification | To EN 61326-1, EN 61000-6-2, EN 61000-6-3 |
