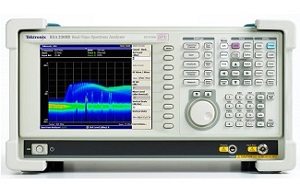

Tektronix RSA3308B Spectrum Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- Typical applications include RF debug of components and systems, analog demodulation and audio distortion measurement for tactical radio and sonar systems, SDR and field tactical radio transceiver measurements, and much more.
Features & specifications
- Frequency range: DC to 8 GHz
- Memory: 64 MB standard, 256 MB optional
- SSB phase noise at 1GHz: -136 dBc/Hz at 10 MHz offset
- Displayed average noise level (DANL), 1GHz: -150 dBm/Hz
- Maximum capture bandwidth: 15 MHz
| Technical characteristics | |
|---|---|
| Bandwidth | DC to 8 GHz |
| Maximum capture BW | 15 MHz |
| Memory | 64 MB / 256 MB |
| DANL, 1 GHz | -150 dBm/Hz |
| Interface ports | GPIB, LAN, USB(2) |
| Frequency response | 100 kHz to 40 MHz: ± 0.5 dB, ± 0.3 dB (typical) 40 MHz to 3 GHz: ± 1.2 dB, ± 0.5 dB (typical) 3 GHz to 6.5 GHz: ± 1.7 dB, ± 1.0 dB (typical) 5 GHz to 8 GHz: ± 1.7 dB, ± 1.0 dB (typical) |
| Center Frequency Setting Resolution | 0.1 Hz |
| RBW Filter Bandwidth Accuracy | 0.1% |
| External Reference Input | 10 MHz, -10 dBm to + 6 dBm |
| Resolution Bandwidth | Range: 1 Hz to 10 MHz, automatically selected or user-defined Accuracy: Within 6.0% ± 0.1% |
| Noise Bandwidth Range (RTSA Mode) |
313.18 MHz to 400.87 kHz |
| Displayed Average Noise Level (Specified) |
10 MHz: -151 dBm/Hz 2 GHz: -150 dBM/Hz 3 GHz: -150 dBm/Hz 7 GHz: -142 dBm/Hz |
| Displayed Average Noise Level (Typical) |
1 kHz to 10 kHz: –144 dBm/Hz 10 kHz to 10 MHz: -151 dBm/Hz 10 MHz to 100 MHz: -151 dBm/Hz 100 MHz to 1 GHz: -150 dBm/Hz 1 GHz to 2 GHz: -150 dBm/Hz 2 GHz to 3 GHz: -150 dBm/Hz 3 GHz to 5 GHz: -142 dBm/Hz 5 GHz to 8 GHz: -142 dBm/Hz |
| Options | |
| Option 02 | 65.5 MSample Deep Memory, Frequency Mask Trigger |
| Option 03 | IQ, Differential IQ Inputs |
| Option 10 | Audio Distortion Analysis |
| Option 21 | Advanced Measurement Suite Software (GP Mod. Analysis, RFID, Sig. Source) |
| Option 24 | GSM/EDGE Analysis |
| Option 25 | CDMA 1X Forward/Reverse Link Analysis |
| Option 26 | 1X EVDO Forward/Reverse Link Analysis |
| Option 28 | TD-SCDMA Analysis |
| Option 30 | 3GPP Release 99 (W-CDMA) and Release 5 UL/DL(HSDPA) Analysis |
| Option 40 | 3GPP Release 6 (HSUPA UL/DL) Analysis(requires Opt. 30) |
| General characteristics | |
| Operating temperature | +10 °C to +40 °C |
| Storage temperature | -20 °C to +60 °C |
| Warm up time | 20 min. |
| Operating altitude | Up to 3,000 m (approximately 10,000 ft.) |
| Non-operating altitude | Up to 12,190 m (40,000 ft.) |
| Power requirements | 100 V AC to 240 V AC, 47 Hz to 63 Hz |
| Power consumption | 400 VA max |
| Safety & EMI compatibility | UL 61010-1; CSA C22.2 No. 61010-1-xx IEC61010, second edition (Self Declaration) Low Voltage Directive 2006/95/EC; EN61010-1: 2001Safety requirements for Electrical Equipment forMeasurement, Control, and Laboratory Use EC Council EMC Directive2004/108/EEC;EN61326:1997 Product FamilyStandard for Electrical Equipment for Measurement,Control, and Laboratory Use – EMC Requirements Radio communications Act:1992, EMC RegulatoryArrangements, AS/NZS CISPR 11 (Industrial,Scientific, and Medical Equipment) |
| Calibration interval | 1 year |
| Dimensions | Height: 215 mm Depth: 425 mm Width: 425 mm |
| Weight | 20 kg, 44 lb |
