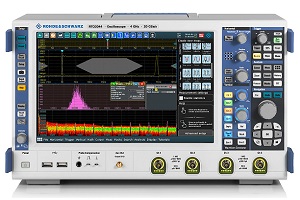

Rohde & Schwarz RTO2044 Oscilloscope
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- With a 4 GHz bandwidth, excellent signal fidelity, 106 waveforms/sec, and up to 16-bit vertical resolution, the easy-to-use RTO2044 excels at both time domain and frequency domain testing.
Key features
- Bandwidth: 4 GHz
- Maximum memory depth: 2 Gsample
- Capacitive touchscreen with SmartGrid
- Up to 16-bit vertical resolution
- Maximum sample rate: 20 Gsample/s
| Vertical system | |
| Analog bandwidth (–3 dB) at 50 Ω input impedance |
≥ 4 GHz |
| Analog bandwidth (–3 dB) at 1 MΩ input impedance |
≥ 500 MHz (meas.) |
| Input impedance | 50 Ω ± 3.5% 50 Ω ± 1.5% from 15 °C to 30 °C) 1 MΩ ± 1% [15 pF (meas.)] |
| Vertical resolution | 8 bit, 16 bit for high resolution decimation (with reduction of the sampling rate), 16 bit for high definition mode (without reduction of the sampling rate |
| DC gain accuracy offset and position set to 0 V, after self-alignment |
at 50 Ω, input sensitivity > 5 mV/div: ± 1.5% at 50 Ω, input sensitivity ≤ 5 mV/div: ± 2% at 1 MΩ: ± 2% |
| Input coupling | 50 Ω: DC, GND 1 MΩ: DC, AC (> 7 Hz), GND |
| Input sensitivity | at 50 Ω: 1 Mv/div to 1 V/div 1 MΩ: 1 mV/div to 10 V/div |
| Maximum input voltage | at 50 Ω: 5 V (RMS) 150 V (RMS), 200 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz |
| Acquisition system | |
| Realtime sampling rate (max.) | 10 Gsample/s on 4 channels 20 Gsample/s on 2 channels |
| Realtime waveform acquisition rate | Maximum: > 1,000,000 waveforms/s |
| Memory depth | Standard: 50 Msample on 4 channels, 100 Msample on 2 channels, 200 Msample on 1 channel with option B101: 100 Msample on 4 channels, 200 Msample on 2 channels, 400 Msample on 1 channel with option B102: 200 Msample on 4 channels, 400 Msample on 2 channels, 800 Msample on 1 channel with option B104: 400 Msample on 4 channels, 800 Msample on 2 channels (restriction: 400 Msample on 2 channels when Ch1 and Ch2 or Ch3 and Ch4 are turned on), 800 Msample on 1 channel Option B110: 1 Gsample on 4 channels, 2 Gsample on 2 channels (restriction: 1 Gsample on 2 channels when Ch1 and Ch2 or Ch3 and Ch4 are turned on), 2 Gsample on 1 channel |
| Waveform streams per channel | up to 3 with independent selection of decimation mode and waveform arithmetic |
| Sampling modes | Realtimemode: max. sampling rate set by digitizer Interpolated time: Enhancement of sampling resolution by interpolation; max. equivalent sampling rate is 4Tsample/s |
| Interpolation modes | Linear, sin(x)/x, sample&hold |
| Ultra segmented mode | Continuous recording of waveforms in acquisition memory without interruption due to visualization Max. realtime waveform acquisition rate: > 2,500,000 waveforms/s Min. blind time between consecutive acquisitions < 300 ns |
| Display characteristics | |
| Display type | 12.1" LC TFT color display with capacitive touchscreen |
| Display resoluiton | 1280 x 800 pixel (WXGA) |
| Diagram types | Yt, XY, spectrum, long-term measurement, spectrogram (spectrogram requires RTO-K18 option) |
| Display interface configuration | Display area can be split up intoseparate diagram areas by dragging and dropping signal icons Each diagram area can hold any number of signals Diagram areas may be stacked on top of each other and later accessed via the dynamic tab menu |
| Signal bar | Accommodates timebase settings, trigger settings and signal icons Signal bar may be docked to left or right side of display areaorhidden |
| Signal icon | Each active waveform is represented by a separate signal icon on the signal bar; the signal icon displays the individual vertical and acquisition settings; a waveform can be minimized to its signal icon so that it appears as a realtime preview in miniature form; dialog boxes and measurement results may also be minimized to a signal icon |
| Axis label | X-axis ticks and Y-axis ticks labeled with tick value and physical unit |
| Diagram label | Diagrams may be individually labeled with a descriptive user-defined name |
| Diagram layout | Grid, crosshair, axis labels and diagram label may be switched on and off separately |
| Persistence | 50 ms to 50 s, or infinite |
| Zoom | User-defined zoom window provides vertical and horizontal zoom; each diagram area supports multiple zoom windows; touchscreen interface simplifies resizeand drag operations on zoom window |
| Signal colors | Predefined or user-defined color tables for persistence display |
| General characteristics | |
| Temperature | Operating: 0 °C to +45 °C Storage: -40 °C to +70 °C |
| Temperature loading | In line with MIL-PRF-28800F section 4.5.5.1.1.1 class 3 tailored to +45°C for operation |
| Climatic loading | +25° C/+40 °C at 85% rel. humidity cyclic, in line with IEC 60068-2-30 +30°C/+40°C/+45°C at 95/75/45% in line with MIL-PRF-28800F section 4.5.5.1.1.2 class 3 tailored to +45 °C for operation |
| Altitude | Operating: Up to 3000 m above sea level Non operating: Up to 4600 m above sea level |
| Power supply | 100 V to 240 V at 50 Hz to 60 Hz and 400 Hz, max. 5.5 A to 2.3 A, in line with MIL-PRF28800F section 3.5 |
| Power consumption | 450 W max. |
| Safety | In line with IEC 61010-1, EN 61010-1, CAN/CSA-C22.2 No. 61010-1-04, UL 61010-1 |
| Dimensions (W x H x D) |
427 mm × 249 mm × 204 mm (16.81 in × 9.80 in × 8.03 in) |
| Weight (without options) | 9.6 kg (21.16 lb) |
| For detailed specifications please see: Rohde & Schwarz RTO2044 Data Sheet | |
