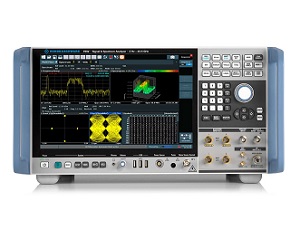

Rohde & Schwarz FSW Signal & Spectrum Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The FSW is capable of in-depth 5G physical layer signal analysis. Its internal bandwidth of up to 2 GHz allows the capture of the entire bandwidth of the downlink signal and evaluation the complete system.
Key Features
- Unparalled low phase noise and best sensitivity on the market
- 2 GHz internal analysis bandwidth, 5 GHz with RTO264 oscilloscope
- 800 MHz real-time analysis bandwidth
- SCPI recorder simplifies code generation
- New flat Windows 10 design and multitouch gesture support
| Model name | Frequency range | Maximum frequency with external harmonic mixers |
Maximum analysis bandwidth |
Maximum real- time bandwidth |
|---|---|---|---|---|
| Rohde & Schwarz FSW8 | 2 Hz to 8 GHz | not supported | 512 MHz | 512 MHz |
| Rohde & Schwarz FSW13 | 2 Hz to 13.6 GHz | not supported | 512 MHz | 512 MHz |
| Rohde & Schwarz FSW26 | 2 Hz to 26.5 GHz | 500 GHz | 2 GHz | 800 MHz |
| Rohde & Schwarz FSW43 | 2 Hz to 43.5 GHz | 500 GHz | 5 GHz | 800 MHz |
| Rohde & Schwarz FSW50 | 2 Hz to 50 GHz | 500 GHz | 2 GHz | 800 MHz |
| Rohde & Schwarz FSW67 | 2 Hz to 67 GHz | 500 GHz | 2 GHz | 800 MHz |
| Rohde & Schwarz FSW85 | 2 Hz to 85 GHz 2 Hz to 90 GHz with FSW B90G option |
500 GHz | 5 GHz | 800 MHz |
| For detailed specifications please see: Rohde & Schwarz FSW Data Sheet | ||||
