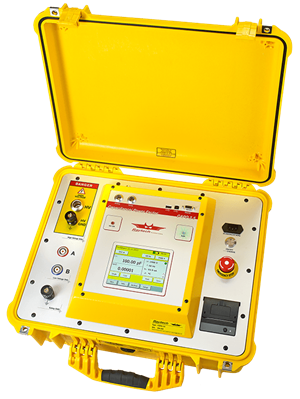

Raytech Capo 2.5 Capacitance & tan δ Power Factor Meter, 2.5kV
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Capo 2.5 is a powerful and precise capacitance and tan δ power factor test instrument designed for the measurement of insulation properties. It measures insulation in apparatus such as such as power transformers for diagnostic and preventive maintenance purposes.
Key Features
- Test voltage up to 2.5 kV
- Built-in Standard capacitor
- Test Frequency from 10Hz to 400Hz
- Includes one channel to measure temperature
- Automatic calibration system and system diagnostics
- Command set for remote control of the instrument
- Report generation in various formats
- Free T-Base Pro software
| Range | Accuracy | Resolution |
| Dissipation factor tan δ | ||
| 0 ... 0.1 0.1 ... 1 >1 |
± 0.5%; Rdg ± 1x10-4 ± 0.5%; Rdg ± 1x10-4 ± 0.5%; Rdg |
1x10-5 1x10-4 3 Digits |
| Power factor cos φ | ||
| 0 ... 0.1 0.1 ... 1 |
± 0.5%; Rdg ± 1x10-4 ± 0.5%; Rdg ± 1x10-4 |
1x10-5 1x10-4 |
| Capacitance at 50 Hz | ||
| 0.00pF ... 1.3μF at 500 V 0.00pF ... 254nF at 2.5 kV |
± 0.3%; Rdg ± 0.3pF ± 0.3%; Rdg ± 0.3pF |
0.01pF or 5 Digits 0.01pF or 5 Digits |
| Capacitance at 60 Hz | ||
| 0.00pF ... 1.1μF at 500 V 0.00pF ... 212nF at 2.5 kV |
± 0.3% Rdg ± 0.3pF ± 0.3% Rdg ± 0.3pF |
0.01pF or 5 Digits 0.01pF or 5 Digits |
| General Specifications | |
| Absolute input voltages | 90-264 VAC at 47-63Hz |
| Output power | Maximum 500VA |
| Test voltage user selectable | 0-2,500 VAC at 10-400 Hz |
| Max. test current | 200 mA |
| Display | 5.7" TFT Color LCD |
| Input devices | Touch screen, support mouse and keyboard |
| Interfaces | 2 USB 2.0 full speed (1 host, 1 device) and 9 Pin RS232 serial |
| Printer | Internal 1.9" thermal printer |
| Operating temperature | -10°C (14°F) to +55° C (131°F) |
| Storage temperature | -20°C ( -4°F) to +70°C (158°F) |
| Degree of protection (closed door) | IP67, dust-tight and water immersion up to a 1-meter depth |
| Size | L: 525 mm (20.7”) W: 437 mm (17.2”) H: 213 mm (8.4”) |
| Weight (instrument) | 22.2 kg (48.9 lbs.) |
