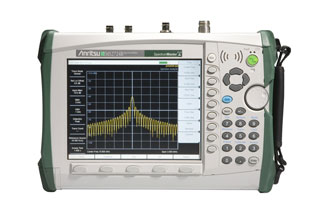

Anritsu MS2724B Handheld Spectrum Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Features & specifications
- Handheld, battery operated, weighs 7.5 lbs
- Frequency range: 9 kHz to 20 GHz High Performance Handheld
- Built-in pre-amplifier (standard) up to 4 GHz
- Large daylight-viewable transflective color display
- Displayed average noise level < -159 dBm (1 Hz resolution b/w at 1 GHz)
- Resolution bandwidths: 1 Hz to 3 MHz in 1-3 sequence
- Video bandwidths: 1 Hz to 3 MHz in 1-3 sequence
- Antennas are available (optional)
- Trace averaging - more than 65000 traces can be averaged
- Save up to 1000 measurement traces internally
- RJ-45 Interface, USB 2.0 Interface, and Software included
- AM, FM and SSB demodulation with speaker and headset jack
