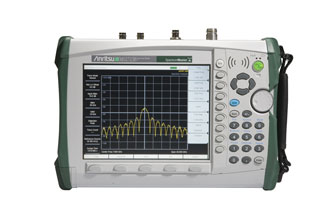

Anritsu MS2723B Handheld Spectrum Analyzer

No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.

Anritsu MS2723B Handheld Spectrum Analyzer
  • Features & specifications

  • Handheld, battery operated, weighs 7.5 lbs
  • Frequency range: 9 kHz to 13 GHz High Performance Handheld
  • Built-in pre-amplifier (standard) up to 4 GHz
  • Large daylight-viewable transflective color display
  • Displayed average noise level < -159 dBm (1 Hz resolution b/w at 1 GHz)
  • Resolution bandwidths: 1 Hz to 3 MHz in 1-3 sequence
  • Video bandwidths: 1 Hz to 3 MHz in 1-3 sequence
  • Antennas are available (optional)
  • Trace averaging - more than 65000 traces can be averaged
  • Save up to 1000 measurement traces internally
  • RJ-45 Interface, USB 2.0 Interface, and Software included
  • AM, FM and SSB demodulation with speaker and headset jack
