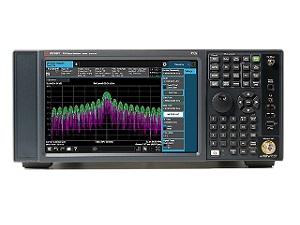

Keysight N9030B PXA Signal Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight N9030B PXA Signal Analyzer can analyze the latest signals with up to 510 MHz analysis bandwidth and better than 78 dBc SFDR, and reveal previously hidden signals with Noise Floor Extension (NFE).
Key features
- Extend frequency up to 110 GHz with Keysight smart mixers
- Capture transient ignals with real-time spectrum analysis
- Simplify application-specific testing with X-Series apps
- Perform deeper troubleshooting with the 89600 VSA software
| Cellular Applications | GSM/EDGE LTE/LTE-Advanced W-CDMA/HSPA/HSPA+ NB-IoT |
|---|---|
| Wireless Connectivity Applications | Short Range Communications (ZigBee, Z-Wave) Bluetooth® (BR/EDR/LE4.2/5.0) WLAN 802.11(a/b/g/j/p/n/ac/af/ah/ax) |
| General Purpose Applications | 89600 VSA Software Analog Demodulation MATLAB Noise Figure Phase Noise Pulse Real-Time Spectrum Analysis EMI Vector Modulation Analysis |
| Frequency | 2 Hz to 50 GHz |
|---|---|
| Frequency Options | 3.6,8.4,13.6,26.5,43,44,50 GHz, Mixers to 1.1 THz |
| Maximum Analysis Bandwidth | 510 MHz |
| Bandwidth Options | 25 standard, 40, 85, 125, 160, 255, 510 MHz |
| Maximum Real-Time Bandwidth | 510 MHz |
| Real-Time Bandwidth Options | 85, 160, 255, 510 MHz |
| DANL @1 GHz | -174 dBm |
| Phase Noise @1 GHz (10 kHz offset) | -136 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | -136 dBc/Hz |
| Phase Noise @1 GHz (1 MHz offset) | -146 dBc/Hz |
| Overall Amplitude Accuracy | ±0.19 dB |
| TOI @1 GHz (3rd Order Intercept) | +22 dBm |
| Option | Frequency range DC coupled |
Frequency range AC coupled |
|---|---|---|
| Option 503 | 2 Hz to 3.6 GHz | 10 MHz to 3.6 GHz |
| Option 508 | 2 Hz to 8.4 GHz | 10 MHz to 8.4 GHz |
| Option 513 | 2 Hz to 13.6 GHz | 10 MHz to 13.6 GHz |
| Option 526 | 2 Hz to 26.5 GHz | 10 MHz to 26.5 GHz |
| Option 544 | 2 Hz to 44 GHz | N/A |
| Option 550 | 2 Hz to 50 GHz | N/A |
| Frequency band | LO multiple (N) | Frequency range |
| 0 | 1 | 2 Hz to 3.6 GHz |
| 1 | 1 | 3.5 GHz to 8.4 GHz |
| 2 | 2 | 8.3 GHz to 13.6 GHz |
| 3 | 2 | 13.5 GHz to 17.1 GHz |
| 4 | 4 | 17 GHz to 26.5 GHz |
| 5 | 4 | 26.4 GHz to 34.5 GHz |
| 6 | 8 | 34.4 GHz to 50 GHz |
