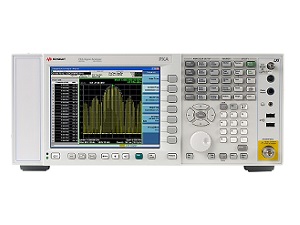

Keysight N9030A PXA Signal Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight N9030A PXA Signal Analyzer is used in aerospace, defense, and commercial communications. Troubleshooting is enhanced with the 89600 VSA software and the X-Series apps simplify testing of phase noise, noise figure, LTE-Advanced, WLAN & more.
Key features
- Extend frequency up to 110 GHz with Keysight smart mixers
- Capture transient signals with real-time spectrum analysis
- Perform deeper troubleshooting with the 89600 VSA software
- Simplify testing of phase noise, noise figure, LTE-Advanced, WLAN
| Cellular Applications | 1xEV-DO cdma2000 cdmaOne GSM/EDGE/EDGE Evolution iDEN/WiDEN/MotoTalk TD-SCDMA with HSDPA/HSUPA/8PSK LTE/LTE-Advanced W-CDMA/HSPA/HSPA+ |
|---|---|
| Wireless Connectivity Applications | 802.16 OFDMA WLAN (802.11a/b/g/p/j/n/ac/ah/ax) Bluetooth® (BR/EDR/LE4.2/5.0) |
| Digital Video Applications | Digital Cable TV DTM B ISDB-T/Tmm DVB-T/H/T2/T2-Lite |
| General Purpose Applications | 89600 VSA Software Analog Demodulation EMI Precompliance Flexible Digital Modulation Analysis MATLAB Noise Figure Phase Noise Pulse Real-Time Spectrum Analysis Remote Language Compatibility SCPI Code Compatibility Stimulus Response |
| Frequency | 3 Hz to 50 GHz |
|---|---|
| Frequency Options | 3.6,8.4,13.6,26.5,43,44,50 GHz, Mixers to 1.1 THz |
| Maximum Analysis Bandwidth | 160 MHz |
| Bandwidth Options | 25 standard, 40, 85, 160 MHz |
| Maximum Real-Time Bandwidth | 160 MHz |
| Real-Time Bandwidth Options | 85, 160 MHz |
| DANL @1 GHz | -171 dBm |
| Phase Noise @1 GHz (10 kHz offset) | -132 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | -132 dBc/Hz |
| Phase Noise @1 GHz (1 MHz offset) | -146 dBc/Hz |
| Overall Amplitude Accuracy | ±0.19 dB |
| TOI @1 GHz (3rd Order Intercept) | +22 dBm |
| Maximum Dynamic Range 3rd Order @1 GHz | 119 dB |
| Option | Frequency range DC coupled |
Frequency range AC coupled |
|---|---|---|
| Option 503 | 3 Hz to 3.6 GHz | 10 MHz to 3.6 GHz |
| Option 508 | 3 Hz to 8.4 GHz | 10 MHz to 8.4 GHz |
| Option 513 | 3 Hz to 13.6 GHz | 10 MHz to 13.6 GHz |
| Option 526 | 3 Hz to 26.5 GHz | 10 MHz to 26.5 GHz |
| Option 543 | 3 Hz to 43 GHz | N/A |
| Option 544 | 3 Hz to 44 GHz | N/A |
| Option 550 | 3 Hz to 50 GHz | N/A |
| Frequency band | LO multiple (N) | Frequency range |
| 0 | 1 | 3 Hz to 3.6 GHz |
| 1 | 1 | 3.5 GHz to 8.4 GHz |
| 2 | 2 | 8.3 GHz to 13.6 GHz |
| 3 | 2 | 13.5 GHz to 17.1 GHz |
| 4 | 4 | 17 GHz to 26.5 GHz |
| 5 | 4 | 26.4 GHz to 34.5 GHz |
| 6 | 8 | 34.4 GHz to 50 GHz |
| For detailed specifications please see: Keysight N9030A Data Sheet | ||
