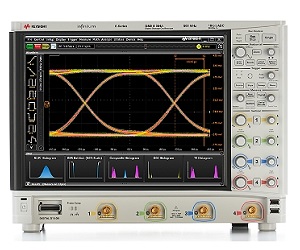

Keysight DSOS054A Infiniium Oscilloscope
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The DSOS054A has superior signal integrity, time base, front-end, and ADC technology blocks. Its platform has up to 16 bits of resolution, low noise, low jitter, and high ENOB. This provides visibility into the true performance of a device.
Key features
- Bandwidth: 500 MHz
- Max sample rate: 20 GS/s (2 channels)
- Max memory depth: 80 Mpts/ch (2 channels)
- System ENOB values in excess of 8
- Low intrinsic jitter (100 fs typical)
| Bandwidth (–3 dB) | 50 Ω: 500 MHz 1 MΩ: 500 MHz |
|---|---|
| Vertical resolution | 10 bits, up to 16 bits with high resolution mode |
| ENOB, (typical, not using high resolution mode) | 8.1 |
| Input impedance | 50 Ω +3.5% (typically +1% at 25 °C) 1 MΩ +1% (14 pF typical) |
| Input sensitivity | 50 Ω: 1 Mv/div to 1 V/div 1 MΩ: 1 mV/div to 5 V/div |
| Input coupling | 50 Ω: DC 1 MΩ: DC, AC (> 11 Hz) |
| DC gain accuracy | +2% full scale (+1% typical) |
| Display | Size: 15 inch capacitive touch Resolution: 1024 pixels horizontally x 768 pixels vertically Windows: Up to 8 waveform windows |
| PC system memory | 8 GB |
| Drives | 256 GB removeable SSD |
| Peripherals | Optical USB mouse and compact keyboard provided |
| I/O Ports | |
| LAN | RJ-45 connector, supports 10/100/1000Base-T. Enables Web enabled remote control, email on trigger, data/file transfers and network printing (supports up to 80 MB/s data offloading) |
| USB | 4 x USB 2.0 host ports (2 x front panel, 2 x side panel), 2 x USB 3.0 host ports(side panel), 1 x USB 3.0 device port (side panel, supports up to 200 MB/s data offloading) |
| Audio | Microphone, line in, line out |
| Display out | DisplayPort and VGA (supports up to two simultaneous displays) |
| Trigger out | TTL levels, high impedance load |
| Auxiliary out (front post and rear BNC) | Configurable: DC level (+2.4 V), probe compensation |
| Timebase reference output | Amplitude into 50 Ω: 1.65 ± 0.05 Vpp (8.3 ± 0.3 dBm) sine wave (internal or external timebase reference selected) Frequency: 10 MHz ±(12 ppb initial + 75 ppb/year aging) when internal timebase reference is selected; external reference frequency when external timebase reference is selected |
| External timebase reference input | Frequency: 10 MHz ±20 ppm Amplitude: 356 mVPP(-5 dBm) to 5 VPP(+18 dBm) sine, 285 mVPP to 4 VPP square Input impedance: 50Ω |
| General characteristics | |
| Temperature | Operating: +5 to +40 %C Non-operating: -40 to +65 %C |
| Humidity | Operating: ≤ 80% relative humidity (non-condensing) at +40 %C Non-operating: ≤ 90% relative humidity (non-condensing) up to +40 %C |
| Altitude | Operating: up to 3,000 m / 9,842 ft Non-operating: up to 15,300 m / 50,196 ft |
| Power | 100-120 V, 50/60/400 Hz 100-240 V, 50/60 Hz Max power dissipated: 380 W |
| Weight | Net: 12 kg (26.4 lbs.) Shipping: 20 kg (44.1 lbs.) |
| Dimensions (with feet retracted) | H 12.9 in (33 cm); W 16.8 in (43 cm); D 9 in (23 cm) |
| For detailed specifications please see: Keysight DSOS054A Data Sheet | |
