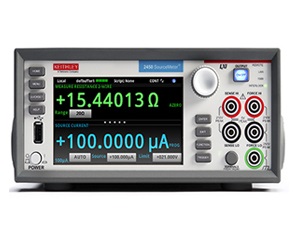

Keithley 2450 Interactive Digital Sourcemeter
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keithley 2450 features integrated source and measure, voltage or current, precision and accuracy on an intuitive, graphical touchscreen display. It is ideal for capturing drain family of curves, threshold voltage, gate leakage and transconductance.
Key features
- I-V curve display on a touchscreen interface
- Source and sink (four-quadrant) operation
- Best accuracy 0.012% with 6½ digit resolution
- 2450 SCPI and TSP® scripting programming modes
| Required testing scenario | Suggested Options/Applications |
|---|---|
| Internet of Things (IoT) - EMC | n/a |
| Internet of Things (IoT) - Wireless Standards Compliance | n/a |
| Internet of Things (IoT) - Power Management | The Keithley 2450 is well suited for power management testing situations. No additional options or applications are required. |
| Internet of Things (IoT) - Signal & Power Integrity | n/a |
| V-Ranges | 20 mV to 200 V |
|---|---|
| I-Ranges | 10 nA to 1 A |
| Basic Accuracy | 0.012% |
| Wideband Noise | 2 mVrms Typical |
| Sweep Types | Linear, Log, Dual Linear, Dual Log, Custom, Source-Memory (SCPI 2400 Mode) |
| Reading Buffer | > 250,000 Point |
| Speed | > 3000 Readings/Second |
| Programming | SCPI (2400 + 2450) + TSP Programming |
| Interfaces | GPIB, USB, Ethernet (LXI) |
| Connections | Front: Banana Jacks, Rear: Triax |
| Dimensions | With bumpers and handle: (106 H x 255 W x 425 D)mm (4.18 x 10.05 x 16.75)in. Without bumpers and handle: (88 H x 213 W x 403 D)mm (3.46 x 8.39 x 15.87)in. |
| Weight | With bumpers and handle: 4.04 kg (8.9 lbs.) Without bumpers and handle: 3.58 kg (7.9 lbs.) |
| Environment | Operating: 0°-50°C, 70% R.H. up to 35°C. Derate 3% R.H./°C, 35°-50°C Storage: -25°C to 65°C. |
| Standard accessories | Test Leads, USB Cable, Ethernet/TSP Cable, Interlock Adapter, Power Cord, Quick Start Guide, CD User's Manual |
