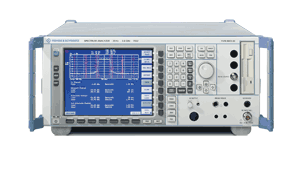

Rohde & Schwarz FSU8 Spectrum Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Rohde & Schwarz FSU is a high-performance spectrum analyzer that meets any challenge in RF analysis, aerospace and defense, or for general microwave applications up to 67 GHz. The FSU8 is the 8 GHz version.
Key features
- Frequency range: 8 GHz
- Standard resolution bandwidth: 10 Hz to 50 MHz
- Video bandwidth: 1 Hz to 10 MHz
- Save screenshots on floppy disc, hard drive or USB memory stick
- Software, USB interface, LAN interface, GPIB, RS-232-C
| Frequency range | DC coupled: 20 Hz to 8 GHz AC coupled: 1 MHz to 8 GHz |
|---|---|
| Frequency resolution | 0.01 Hz |
| External reference frequency | 1 MHz to 20 MHz, 1 Hz steps |
| Frequency counter resolution | 0.1 Hz to 10 kHz, selectable |
| Display | 21 cm LC TFT color display (8.4 in.) |
| Display resolution | (800 x 600) pixel (SVGA resolution) |
| Pixel rate failure | < 1 x 10-5 |
| Operating temperature | +5 %C to +40 %C |
| Storage temperature | -40 %C to +70 %C |
| Dimensions | W 435 mm x H 192 mm x D 460 mm (17.13 in x 7.56 in x 18.11 in) |
| Weight (without options) | 15.4 kg (33.95 lb) |
| For detailed specifications please see: Rohde & Schwarz FSU Data Sheet | |
