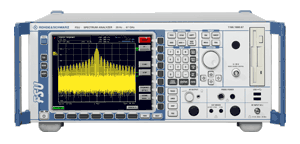

Rohde & Schwarz FSU67 Spectrum Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Rohde & Schwarz FSU is a high-performance spectrum analyzer that meets any challenge in RF analysis, aerospace and defense, or for general microwave applications up to 67 GHz. The FSU67 is the 67 GHz version.
Key features
- Frequency range: 67 GHz
- Standard resolution bandwidth: 10 Hz to 50 MHz
- Video bandwidth: 1 Hz to 10 MHz
- Save screenshots on floppy disc, hard drive or USB memory stick
- Software, USB interface, LAN interface, GPIB, RS-232-C
| Frequency range | DC coupled: 20 Hz to 67 GHz |
|---|---|
| Frequency resolution | 0.01 Hz |
| External reference frequency | 1 MHz to 20 MHz, 1 Hz steps |
| Frequency counter resolution | 0.1 Hz to 10 kHz, selectable |
| Display | 21 cm LC TFT color display (8.4 in.) |
| Display resolution | (800 x 600) pixel (SVGA resolution) |
| Pixel rate failure | < 1 x 10-5 |
| Operating temperature | +5 %C to +40 %C |
| Storage temperature | -40 %C to +70 %C |
| Dimensions | W 435 mm x H 192 mm x D 460 mm (17.13 in x 7.56 in x 18.11 in) |
| Weight (without options) | 17.4 kg (38.3 lb) |
| For detailed specifications please see: Rohde & Schwarz FSU Data Sheet | |
