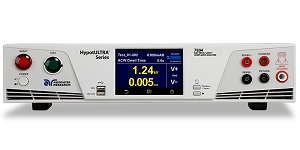

Associated Research 7850 Hypot Ultra AC/DC Hipot Tester
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Hypot Ultra 7850 provides the tools like on-board data storage, touch screen interface, and communication interfaces needed to modernize production lines. It does hipot testing to 5 kV AC/6 kV DC as well as insulation resistance and continuity testing.
Key features
- 5 kV AC and 6 kV DC Hipot Tester
- Performs insulation resistance and continuity testing
- Input: 100 to 120 VAC / 200 to 240 VAC, auto range
- Improved traceability with on-board data storage
- Enhanced security, and a touch screen interface
| Input specifications | |
| Voltage | 100 to 120 VAC / 200 to 240 VAC ± 10%, Auto Range |
| Frequency | 50/60 Hz ± 5% |
| Fuse | 6.3 A, Slow Blow 250 VAC |
| AC Withstand test mode | |
| Output voltage | Range: 0 to 5,000 VAC Resolution: 1 VAC Accuracy: ± (2% of setting + 5 V) |
| Output frequency | 50/60 Hz ± 0.1%, User Selection |
| Output waveform | Sine Wave, Crest Factor = 1.3 to 1.5 |
| Output regulation | ± (1% of output + 5V) |
| HI and LO Limit Total | Range: 0.000 - 9.999 mA Resolution: 0.001 mA Accuracy: ± (2% of setting + 2 counts) |
| HI and LO Limit Real | Range: 0.000 - 9.999 mA Resolution: 0.001 mA Accuracy: ± (3% of setting + 50 μA) |
| Ramp Up Timer | Range: 0.1 to 999.9 sec |
| Ramp Down Timer | 0.0 to 999.9 sec |
| Dwell Timer | Range: 0, 0.2 to 999.9 sec (0=Continuous) |
| Ground Continuity | Current: DC 0.1 A ± 0.01 A, fixed |
| Current | Max. Ground Resistance: 1.0 Ω ± 0.1 Ω |
| Arc Detection | Range: 1 to 9 ranges (9 is most sensitive) |
| DC Withstand test mode | |
| Output voltage | Range: 0 to 6000 VDC Resolution: 1 V Accuracy: ± (2% of setting + 5 V) |
| DC Output Ripple | < 4% (6 kV/10 mA at Resistive Load) |
| HI and LO-Limit | Range: 0.0000 – 0.9999 μA Resolution: 0.0001 μA Accuracy: ± (2% of setting + 10 counts), Low Range is ON Range: 1.000 – 9.999 μA Resolution: 0.001 μA Accuracy: ± (2% of setting + 10 counts), Low Range is ON Range: 10.00 – 99.99 μA Resolution: 0.01 μA Accuracy: ± (2% of setting + 10 counts), Low Range is ON Range: 100.0 – 999.9 μA Resolution: 0.1 μA Accuracy: ± (2% of setting + 2 counts) Range: 1,000 – 10,000 μA Resolution: 1 μA Accuracy: ± (2% of setting + 2 counts) |
| Ramp Up Timer Range | 0.4 - 999.9 sec, Low Range is OFF 0.5 – 999.9 sec, Low Range is ON |
| Ramp Down Timer | Range: 0.0, 1.0 – 999.9 sec (0=OFF) |
| Dwell Timer | 0, 0.4 – 999.9 sec (0=Continuous) 0, 1.0 – 999.9 sec, Low Range is ON |
| Ramp-HI Selectable | Range: 0 – 20 mA selectable |
| Charge LO | Range: 0.0 – 350.0 μA DC or Auto Set |
| Discharge Time | < 50 ms for no load, < 100 ms for capacitive load |
| Maximum Capacitive Load DC Mode | 1 μF < 1 kV 0.75 μF < 2 kV 0.5 μF < 3 kV 0.04 μF < 5 kV 0.015 μF < 6 kV |
| Arc Detection | Range: 1 – 9 ranges (9 is most sensitive) |
| Insulation Resistance Mode | |
| Output Voltage, DC | Range: 10 – 1,000 VDC Resolution: 1 VDC Accuracy: ± (2% of setting + 2 counts) Range: 1,001 – 6,000 VDC Resolution: 1 VDC Accuracy: ± (2% of setting + 5 V) |
| Charging Current HI and LO-Limit | Maximum > 20 mA peak Range: 0.10 MΩ – 99.9 MΩ (HI-Limit: 0=OFF) Resolution: 0.01 MΩ Accuracy: ± (2% of setting + 2 counts) Range: 100.0 MΩ – 999.9 MΩ (HI-Limit: 0=OFF) Resolution: 0.1 MΩ Accuracy: 1,000 to 9,999 ± (5% of setting + 2 counts) Range: 1,000 MΩ – 50,000 MΩ (HI-Limit: 0=OFF) Resolution: 1 MΩ Accuracy: 10,000 to 50,000 ± (15% of setting + 2 counts) |
| Ramp Up Timer | Range: 0.1 – 999.9 sec |
| Ramp Down Timer | Range: 1.0 – 999.9 sec |
| Dwell Timer | Range: 0.5 – 999.9 sec (0=Continuous) |
| Delay Timer | Range: 0.5 – 999.9 sec |
| Charge-LO | 0.000 – 3.500 μA or Auto Set |
| Continuity Test Mode | |
| Output Current, DC | 1 A for 0.000 – 1.000 Ω 0.1 A for 1.01 – 10.00 Ω 0.01 A for 10.01 – 100 Ω 0.001 A for 101 – 1,000 Ω 0.0001 A for 1001 – 10,000 Ω (1 A is Max) |
| Resistance Display Max & Min Max-Lmt |
Range: 0.000 to 1.000Ω Resolution: 0.001 Ω Accuracy: ± (1% of setting + 3 counts) Range: 1.01 to 10.00Ω Resolution: 0.01 Ω Accuracy: ± (1% of setting + 3 counts) Range: 10.1 to 100.0Ω Resolution: 0.1 Ω Accuracy: ± (1% of setting + 3 counts) Range: 101 to 1,000Ω Resolution: 1 Ω Accuracy: ± (1% of setting + 3 counts) Range: 1,001 to 10,000Ω Resolution: 1 Ω Accuracy: ± (1% of setting + 10 counts) |
| Dwell Timer | Range: 0, 0.4 – 999.9 sec (0=Continuous) |
| Resistance Offset | Range: 0.000 – 10.00 Ω |
| General specifications | |
| Memory | 2,000 steps, 200 steps per test file max 100,000 test results |
| Mechanical | Bench or rackmount (2U height) with feet |
| Interface | Standard: USB, RS-232 Optional: GPIB (IEEE-488.2), Ethernet or USB Printer |
| SmartGFI® | 0, 0.4 – 5.0 mA (0=OFF) |
| Dimensions | (W x H x D) (16.92 x 3.50 x 15.75)in. (430 x 88.1 x 400mm) |
| Weight | 35 lbs (15.9 kg) |
| For detailed specifications please see: Associated Research 7850 Data Sheet | |
