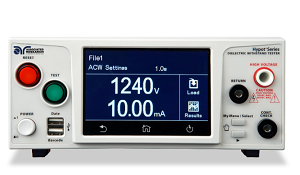

Associated Research 3880 500 VA AC Hipot Tester
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Associated Research 3880 is a 500 VA instrument that performs Hipot testing to 5 kV AC at 100 mA and also does Ground Continuity testing.
Key features
- Generates 500 VA at 5 kV AC
- Also performs Ground Continuity testing
- Input: 100 to 120 VAC / 200 to 240 VAC, auto range
- Improved traceability with on-board data storage
- Enhanced security, and a touch screen interface
| Input specifications | |
| Voltage | 100 to 120 VAC / 200 to 240 VAC ± 10%, Auto Range |
| Frequency | 50/60 Hz ± 5% |
| Fuse | 3.15 A, Fast Blow 250 VAC |
| Dielectric withstand test mode | |
| Output Rating | 5000 V at 100 mA AC |
| Maximum Limit, AC | Range: 0.00 - 99.99 mA Resolution: 0.01 mA Accuracy: ± (2% of setting + 6 counts) |
| Minimum Limit, AC | Range: 0.000 - 9.999 mA Resolution: 0.001 mA Accuracy: ± (2% of setting + 6 counts) |
| Arc Detection | Range: 0 - 9, ON/OFF Select |
| Ground Fault Interrupt | GFI Trip Current: 450 μA max (AC or DC) HV Shut Down Speed: < 1 ms |
| Current Display, AC | Range 1: 0.000 - 4.000 mA; Accuracy ± (2% of reading + 2 counts) Range 2: 3.50 - 99.99 mA; Accuracy ± (2% of reading + 6 counts) |
| Discharge Time | < 50 msec for no load < 100 msec for capacitive load |
| Maximum capacitive load vs output voltage | 1 μF < 1 kV 0.75 μF < 2 kV 0.5 μF < 3 kV 0.08 μF < 4 kV 0.040 μF < 5 kV 0.015 μF < 6 kV |
| AC Voltage Waveform | Sine Wave, Crest Factor = 1.3 - 1.5 |
| Output Frequency | Range: 50 or 60 Hz, User Selectable |
| Output Voltage Regulation | ± (1% of output + 5 V) from no load to full load and over input voltage range |
| Dwell Timer | Range: AC 0, 0.2 - 999.9 sec (0 = Continuous) |
| Ramp Timer | Range: Ramp-Up: 0.1 - 999.9 sec Ramp-Down: AC 0.0 - 999.9 sec |
| Ground continuity Auto offset |
Range: 0.00 to 0.50 Ω Resolution: 0.01 Ω Accuracy: ± (3% of setting + 0.02 Ω) |
| Ground continuity Max Limit/Min Limit |
Range: 0.00 to 1.50 Ω Resolution: 0.01 Ω Accuracy: ± (3% of setting + 0.02 Ω) |
| Output Short Circuit Current | > 200 mA |
| General specifications | |
| Remote Control & Signal I/O | Inputs: Test, Reset, Hardware Interlock, File Recall Outputs: Pass, Fail, Test-in-Process, Reset-Out, Start-Out |
| Vmax | Displays the maximum voltage values recorded during a breakdown |
| Imax | Displays the maximum leakage current value read during a test |
| Memories | 50 steps 1500 test results |
| Interface | USB standard |
| Language | English, Traditional Chinese, Simplified Chinese, Turkish, Portuguese, Spanish, German, French |
| Security | Multiple user setups with ID and password |
| Dimensions | (W x H x D) 8.5 x 3.5 x 11.9 in., (215 x 88.1 x 300 mm) |
| Weight | 12 lbs (5.46 kgs) |
| For detailed specifications please see: Associated Research 3880 Data Sheet | |
