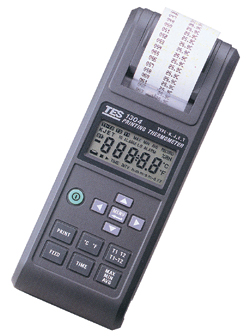

TES-1304 Digital Thermometer

TES-1304 Digital Thermometer
  • Feature summary

  • Type K.J.E.T. Thermocouple Input
  • Multi-function channels (T1, T2 & T1-T2)
  • Real-time clock calendar & °C/°F switch
  • 0.1% of reading & MAX/MIN/AVG Display
  • Built-in Printer with time interval setting
  • Resolution: 0.1 degrees Celsius
  • Price: $495.00 US dollars

Specifications
Accuracy at 23°C ± 5°C, below 80%RH. Resolution: 0.1°C (0.1°F)
Thermocouple used Range Accuracy
Type K 0°C to 982°C ± (0.01% rdg + 0.5°C)
982°C to 1333°C ± (0.05% rdg + 0.5°C)
32°F to 1800°F ± (0.01% rdg + 0.9°F)
1800°F to 2431°F ± (0.05% rdg + 0.9°F)
Type J 0°C to 760°C ± (0.01% rdg + 0.5°C)
32°F to 1400°F ± (0.01% rdg + 0.9°F)
Type E 0°C to 703°C ± (0.01% rdg + 0.5°C)
32°F to 1297°F ± (0.01% rdg + 0.9°F)
Type T 0°C to 400°C ± (0.01% rdg + 0.5°C)
32°F to 752°F ± (0.01% rdg + 0.9°F)
Type K, J, E, T -200°C to 0°C ± (0.5% rdg + 0.7°C)
-328°F to 32°F ± (0.5% rdg + 1.4°F)

Measurement Ranges
Thermocouple Range (°C) Range (°F)
Type K -200°C to 1333°C -328°F to 2431°F
Type J -200°C to 760°C -328°F to 1400°F
Type E -200°C to 703°C -328°F to 1297°F
Type T -200°C to 400°C -328°F to 752°F

Other Specifications
Sampling Rate 1 sample per second
Printer size 16 characters per line on thermal paper, 38mm wide
Operating conditions 0°C to 50°C (32°F to 122°F) below 70%RH
Dimensions 193(L) x 74(W) x 37(H)mm (7.6" x 2.9" x 1.5")
Weight 365g with batteries and thermal paper, (12.9 oz)
Accessories Batteries, Carrying case, Thermal paper (2 rolls), Mini DIN cable, Type K thermocouple probe
