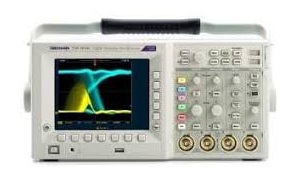

Tektronix TDS 3000C Digital Phosphor Oscilloscope
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The TDS3000C Series offers fast waveform capture rates on a continuous basis that save time by quickly revealing the nature of faults, so advanced triggers can be applied to isolate them.
Key features
- 100 MHz, 300 MHz, and 500 MHz bandwidth models
- 2 or 4 analog channel models
- Sample rates up to 5 GS/s real time on all channels
- 10k record length on all channels
- 3,600 wfms/s continuous waveform capture rate
- Front-panel USB host port for easy storage and transfer of measurement data
- Suite of advanced triggers and 25 automatic measurements
| Model number | Technical characteristics |
| TDS 3012C | Bandwidth: 100 MHz Channels: 2 Typical rise time: 3.5 ns Sample rate on each channel: 1.25 GS/s Record length: 10 kpoints Hardware bandwidth limit: 20 MHz |
| TDS 3014C | Bandwidth: 100 MHz Channels: 4 Typical rise time: 3.5 ns Sample rate on each channel: 1.25 GS/s Record length: 10 kpoints Hardware bandwidth limit: 20 MHz |
| TDS 3032C | Bandwidth: 300 MHz Channels: 2 Typical rise time: 1.2 ns Sample rate on each channel: 2.5 GS/s Record length: 10 kpoints Hardware bandwidth limit: 20 MHz, 150 MHz |
| TDS 3034C | Bandwidth: 300 MHz Channels: 4 Typical rise time: 1.2 ns Sample rate on each channel: 2.5 GS/s Record length: 10 kpoints Hardware bandwidth limit: 20 MHz, 150 MHz |
| TDS 3052C | Bandwidth: 500 MHz Channels: 2 Typical rise time: 0.7 ns Sample rate on each channel: 5 GS/s Record length: 10 kpoints Hardware bandwidth limit: 20 MHz, 150 MHz |
| TDS 3054C | Bandwidth: 500 MHz Channels: 4 Typical rise time: 0.7 ns Sample rate on each channel: 5 GS/s Record length: 10 kpoints Hardware bandwidth limit: 20 MHz, 150 MHz |
| Vertical system | |
| Input coupling | AC, DC, GND |
| Input impedance | 1 MΩ in parallel with 13 pF or 50 &Omega |
| Input sensitivity range | 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div |
| Vertical resolution | 9 bits |
| Maximum input voltage | 1 MΩ: 150 Vrms with peaks at ≤400 V 50 Ω: 5 Vrms with peaks at ≤30 V |
| DC gain accuracy | ±2% |
| Position range | ±5 div |
| General specifications | |
| Display type | 6.5 in. (165.1 mm) liquid-crystal TFT color display |
| Display resoluiton | 640 horizontal × 480 vertical pixels (VGA) |
| Interpolation | Sin(x)/x |
| Waveform styles | Dots, vectors, variable persistence, infinite persistence |
| Graticules | Full, grid, crosshair, and frame. NTSC, PAL, SECAM, and vectorscope (100% and 75% color bars) with optional TDS3VID application module |
| Format | YT, XY, and Gated XYZ (XY with Z-axis blanking available on 4-channel instruments only) |
| Source voltage | 100 to 240 V ± 10% at 45 Hz to 66 Hz 100 V to 120 V at 45 Hz to 440 Hz |
| Power consumption | 75 W maximum |
| Battery power | Requires TDS3BATC, rechargeable lithium ion battery pack Typical operating time: 3 hours |
| Input/Output Ports | Front-panel USB 2.0 host port, RJ-45 connector, supports 10Base-T LAN, GPIB port, RS-232 port, VGA video, External trigger input: BNC connector, input impedance >1 MΩ in parallel with 17 pF. Maximum input voltage is 150 Vrms |
| Temperature | Operating: 0 °C to +50 °C Non-operating: -40 °C to +71 °C |
| Humidity Operating and non-operating |
At or below 30°C: Up to 95% RH From 30°C to 50°C: Up to 45% RH |
| Altitude | Operating: Up to 3,000 meters Non-operating: Up to 15,000 meters |
| Dimensions | Height: 6.9 in (176 mm) Width: 14.8 in (375 mm) Depth: 5.9 in (149 mm) |
| Weight | Instrument only: 3.2 kg With accessories: 4.5 kg |
| Safety | UL61010B-1, CSA1010.1, IEC61010-1, EN61010-1 |
| For detailed specifications please see: Tektronix TDS 3000C Data Sheet | |
