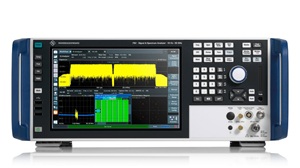

Rohde & Schwarz FSV3000 Signal & Spectrum Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The FSV3000 has been designed for high measurement speed. An analysis bandwidth of up to 200 MHz, enables digital modulation analysis for cellular and wireless standards, including 5G NR. With up to 200 MHz realtime analysis bandwidth, users can monitor the spectrum and trigger on short duration signals.
Key Features
- Frequency range from 10 Hz to 4/7.5/13.6/30/44/50 GHz
- Frequency range extension up to 325 GHz with external harmonic mixers
- Analysis and real-time bandwidth of up to 200 MHz
- DANL at 1 GHz: –151 dBm (with optional preamplifier: –165 dBm)
- User interface with multitouch display, SCPI recorder and event based actions
| Model number | Frequency range | Bandwidth (standard filter) |
Resolution bandwidth | I/Q demodulation bandwidth |
|---|---|---|---|---|
| Rohde & Schwarz FSV3004 | 10 Hz to 4 GHz | 1 Hz to 10 MHz | Channel filter: 100 Hz to 5 MHz Video filter: 1 Hz to 10 MHz |
Standard: 28 MHz With option FSV3-B40: 40 MHz With option FSV3-B200: 200 MHz |
| Rohde & Schwarz FSV3007 | 10 Hz to 7.5 GHz | 1 Hz to 10 MHz | Channel filter: 100 Hz to 5 MHz Video filter: 1 Hz to 10 MHz |
Standard: 28 MHz With option FSV3-B40: 40 MHz With option FSV3-B200: 200 MHz |
| Rohde & Schwarz FSV3013 | 10 Hz to 13.6 GHz | 1 Hz to 10 MHz | Channel filter: 100 Hz to 5 MHz Video filter: 1 Hz to 10 MHz |
Standard: 28 MHz With option FSV3-B40: 40 MHz With option FSV3-B200: 200 MHz |
| Rohde & Schwarz FSV3030 | 10 Hz to 30 GHz | 1 Hz to 10 MHz | Channel filter: 100 Hz to 5 MHz Video filter: 1 Hz to 10 MHz |
Standard: 28 MHz With option FSV3-B40: 40 MHz With option FSV3-B200: 200 MHz |
| Rohde & Schwarz FSV3044 | 10 Hz to 44 GHz | 1 Hz to 10 MHz | Channel filter: 100 Hz to 5 MHz Video filter: 1 Hz to 10 MHz |
Standard: 28 MHz With option FSV3-B40: 40 MHz With option FSV3-B200: 200 MHz |
| Rohde & Schwarz FSV3050 | 10 Hz to 50 GHz | 1 Hz to 10 MHz | Channel filter: 100 Hz to 5 MHz Video filter: 1 Hz to 10 MHz |
Standard: 28 MHz With option FSV3-B40: 40 MHz With option FSV3-B200: 200 MHz |
| For detailed specifications please see: Specifications / Data Sheet | ||||
