High Voltage model PTS-100 DC Hipot Tester

High Voltage model PTS-100 DC Hipot Tester
  • Features & specifications

  • 100kV DC Hipot Tester

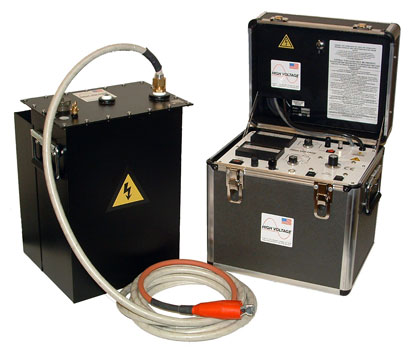

  • Comprises two separate units: The control panel (30 lbs) and the high voltage tank (68 lbs)
  • Input is 120V, 60Hz, 10 amps, or 230V, 50/60Hz, 5 amps
  • Output is 0 to 100kV DC, 10mA negative output polarity, positive ground
  • Continuous duty with capacitive charging
  • Kilovoltmeter: 3.5", scaled 0 to 50/100kVdc, accuracy 2% of full scale
  • Shipping weight is 140 lbs.
