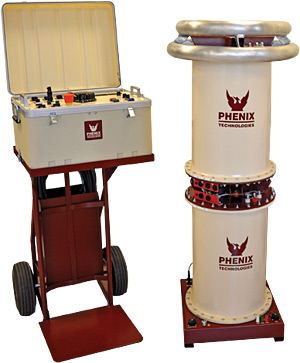

Phenix 6CP200/100-10 AC Hipot Tester

Phenix 6CP200/100-10 AC Hipot Tester
  • Features & specifications

  • Portable and ruggedly constructed
  • Clean and efficient controls
  • Easy-to-read digital instrumentation
  • Simple set-up and operation
  • Low partial discharge output
  • Guard mode for accurate current measurements
  • Digital multi-range metering cable charging
  • Digital timer with audible alarm
  • Adjustable overload circuit
  • Transient protection on all meters and relays
  • Output overload indicator with reset switch
  • Emergency Off pushbutton with key lockout
  • Manual control of output voltage

Specifications, Applications, & Benefits
Applications Suitable for dielectric testing of a wide range of electrical apparatus including cables, electrical switchgear, motors, generators, and protective equipment
Features and benefits
  • Field testing: This portable and rugged instrument delivers 200kV AC in the field with unmatched safety, accuracy, and ease of use.
  • Safety: Safety features include an emergency Off pushbutton with key lockout, output overload indicator with reset switch, slow and fast-acting transient protection on all meters and relays, circuit breaker protection, adjustable overload circuit, and a high voltage output equipped with a corona free aluminium shielding electrode.
  • Accuracy: All units in the 6CP line use a combination control and regulator enclosure, and a separate high voltage section. The system is equipped with advanced digital metering, and the metering guard mode allows accurate measurements of the high voltage test specimen leakage current by bypassing stray capacitive currents. The high quality design and construction is key to the superior partial discharge performance of the 6CP line.
  • Ease of use: With more than 35 years of manufacturing experience, Phenix Technologies makes instruments with well laid out panels that are intuitively easy to use, with large digital meters, convenient cable storage, and excellent instruction manuals. Setup time is minimal.
Input voltage 220 to 240V, 25A, 50/60 Hz
Output Voltage/Current 0 to 100kV AC, 100mA
0 to 200kV AC, 50mA
Duty cycles 5 min ON /15 min OFF: 10kVA
15 min ON /1 hr OFF: 7.5kVA
1 hr ON /1 hr OFF: 5kVA
Features Compensation: 50% Inductive Reactive
Metering Accuracy: 0.8% Reading + 0.2% Full scale
Voltmeter range(s): 0-100 /0-200
Currentmeter range(s): 0-200μA /2mA /20mA /200mA
Output: HV Electrode
Cables and documentation
  • Power Cable, 30 ft.
  • Power Interconnect, 20 ft.
  • Meter Interconnect, 20 ft.
  • Ground Cable, (3) 30 ft.
  • Return, 10 ft.
  • Divider Metering, 30 ft.
  • Paralleling, 10 ft.
  • Calibration Certificate
  • Operation/Maintenance Manual, 2 copies
Shipping weight 858 lbs. (390 kg.) (In three packages)
