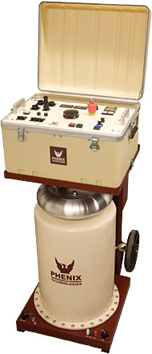

Phenix 6CP100/50-7.5 AC Hipot Tester

Phenix 6CP100/50-7.5 AC Hipot Tester
  • Features & specifications

  • Lightweight and ruggedly constructed
  • Clean and efficient controls
  • Easy-to-read digital instrumentation
  • Simple set-up and operation
  • Low partial discharge output
  • Guard mode for accurate current measurements
  • Digital multi-range metering cable charging
  • Digital timer with audible alarm
  • Adjustable overload circuit
  • Transient protection on all meters and relays
  • Output overload indicator with reset switch
  • Emergency Off pushbutton with key lockout
  • Manual control of output voltage

Specifications, Applications, & Benefits
Applications Suitable for dielectric testing of a wide range of electrical apparatus including cables, electrical switchgear, motors, generators, and protective equipment
Features and benefits
  • Field testing: This lightweight and rugged instrument delivers 100kV AC in the field with unmatched safety, accuracy, and ease of use.
  • Safety: Safety features include an emergency Off pushbutton with key lockout, output overload indicator with reset switch, slow and fast-acting transient protection on all meters and relays, circuit breaker protection, adjustable overload circuit, and a high voltage output equipped with a corona free aluminium shielding electrode.
  • Accuracy: All units in the 6CP line use a combination control and regulator enclosure, and a separate high voltage section. The system is equipped with advanced digital metering, and the metering guard mode allows accurate measurements of the high voltage test specimen leakage current by bypassing stray capacitive currents. The high quality design and construction is key to the superior partial discharge performance of the 6CP line.
  • Ease of use: With more than 35 years of manufacturing experience, Phenix Technologies makes instruments with well laid out panels that are intuitively easy to use, with large digital meters, convenient cable storage, and excellent instruction manuals. Setup time is minimal.
Input voltage 110 to 120V, 30A, 50/60 Hz. (Please specify when placing order)
220 to 240V, 15A, 50/60 Hz. (Please specify when placing order)
Output Voltage/Current 0 to 50kV AC, 150mA
0 to 100kV AC, 75mA
Duty cycles 5 min ON /15 min OFF: 7.5kVA
15 min ON /1 hr OFF: 5kVA
1 hr ON /1 hr OFF: 3kVA
Features Compensation: 66% Inductive + Selectable Capacitive Preload
Metering Accuracy: 0.8% Reading + 0.2% Full scale
Voltmeter range(s): 0-50 kV/0-100kV
Currentmeter range(s): 0-200μA /2mA /20mA /200mA
Output: HV Electrode
Cables and documentation
  • Power Cable, 30 ft.
  • Power Interconnect, 20 ft.
  • Meter Interconnect, 20 ft.
  • Ground Cable, (2) 20 ft.
  • Return Cable, 20 ft.
  • Calibration Certificate
  • Operation/Maintenance Manual, 2 copies
