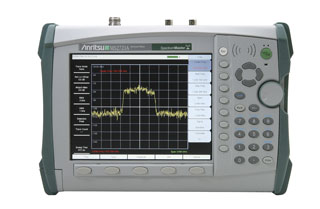

Anritsu MS2721A Handheld Spectrum Analyzer

Anritsu MS2721A Handheld Spectrum Analyzer
  • Features & specifications

  • Handheld, battery operated, weighs 6.9 lbs
  • Frequency range: 100 kHz to 7.1 GHz
  • Built-in pre-amplifier (standard)
  • Large daylight-viewable transflective color display
  • Displayed average noise level < -153 dBm (10 Hz resolution b/w at 1 GHz)
  • Resolution bandwidths: 10 Hz to 3 MHz in 1-3 sequence
  • Video bandwidths: 1 Hz to 3 MHz in 1-3 sequence
  • Antennas are available (optional)
  • Trace averaging - more than 65000 traces can be averaged
  • Save up to 1000 measurement traces internally
  • RJ-45 Interface, USB Interface, and Software included
  • AM, FM and SSB demodulation with speaker and headset jack
