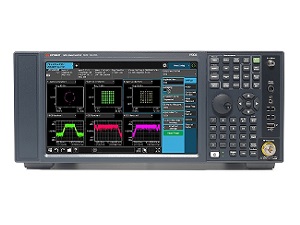

Keysight N9020B MXA Signal Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight N9020B MXA Signal Analyzer along with the 89600 VSA Software is useful for cellular, wireless connectivity, aerospace, defense, and general purpose applications.
Key features
- Quickly adapt to test requirements of wireless devices
- Shorten test times with hardware-accelerated power measurements
- Capture transient signals with full-band real-time spectrum analysis
- Simplify testing with one-button measurements
| Cellular Applications | GSM/EDGE LTE/LTE-Advanced W-CDMA/HSPA/HSPA+ NB-IoT |
|---|---|
| Wireless Connectivity Applications | Short Range Communications (ZigBee, Z-Wave) Bluetooth® (BR/EDR/LE4.2/5.0) WLAN 802.11(a/b/g/j/p/n/ac/af/ah/ax) |
| General Purpose Applications | 89600 VSA Software Analog Demodulation MATLAB Noise Figure Phase Noise Pulse Real-Time Spectrum Analysis EMI Vector Modulation Analysis |
| Frequency | 10 Hz to 50 GHz |
|---|---|
| Frequency Options | 3.6,8.4,13.6,26.5,32,44,50 GHz, Mixers to 1.1 THz |
| Maximum Analysis Bandwidth | 160 MHz |
| Bandwidth Options | 25 standard, 40, 85, 125, 160 MHz |
| Maximum Real-Time Bandwidth | 160 MHz |
| Real-Time Bandwidth Options | 85, 125, 160 MHz |
| DANL @1 GHz | -172 dBm |
| Phase Noise @1 GHz (10 kHz offset) | -114 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | -114 dBc/Hz |
| Phase Noise @1 GHz (1 MHz offset) | -136 dBc/Hz |
| Overall Amplitude Accuracy | ±0.23 dB |
| TOI @1 GHz (3rd Order Intercept) | +20 dBm |
| Maximum Dynamic Range 3rd Order @1 GHz | n/a |
| Option | Frequency range DC coupled |
Frequency range AC coupled |
|---|---|---|
| Option 503 | 10 Hz to 3.6 GHz | 10 MHz to 3.6 GHz |
| Option 508 | 10 Hz to 8.4 GHz | 10 MHz to 8.4 GHz |
| Option 513 | 10 Hz to 13.6 GHz | 10 MHz to 13.6 GHz |
| Option 526 | 10 Hz to 26.5 GHz | 10 MHz to 26.5 GHz |
| Frequency band | LO multiple (N) | Frequency range |
| 0 | 1 | 10 Hz to 3.6 GHz |
| 1 | 1 | 3.5 GHz to 8.4 GHz |
| 2 | 2 | 8.3 GHz to 13.6 GHz |
| 3 | 2 | 13.5 GHz to 17.1 GHz |
| 4 | 4 | 17 GHz to 26.5 GHz |
| For detailed specifications please see: Keysight N9020B Data Sheet | ||
