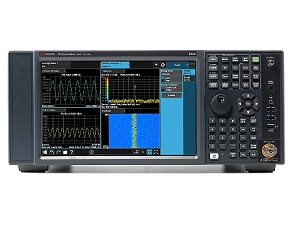

Keysight N9010B EXA Signal Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight N9010B EXA Signal Analyzer provides the most cost-effective analysis for millimeter-wave measurements. With list-sweep mode it performs power measurements quickly at discrete frequency points.
Key features
- Address diverse needs with the fast, flexible EXA
- Enhance accuracy with best-in-class level accuracy, DANL & TOI
- It performs fast measurements at discrete frequency points
- Simplify testing with X-Series measurement apps
| Cellular Applications | GSM/EDGE LTE/LTE-Advanced W-CDMA/HSPA/HSPA+ NB-IoT |
|---|---|
| Wireless Connectivity Applications | Short Range Communications (ZigBee, Z-Wave) Bluetooth® (BR/EDR/LE4.2/5.0) WLAN 802.11(a/b/g/j/p/n/ac/af/ah/ax) |
| Digital Video Applications | n/a |
| General Purpose Applications | 89600 VSA Software Analog Demodulation MATLAB Noise Figure Phase Noise Pulse EMI Vector Modulation Analysis |
| Frequency | 10 Hz to 44 GHz |
|---|---|
| Frequency Options | 3.6, 7, 13.6, 26.5, 32, 44 GHz, Mixers to 1.1 THz |
| Maximum Analysis Bandwidth | 40 MHz |
| Bandwidth Options | 25 standard, 40 MHz |
| Maximum Real-Time Bandwidth | n/a |
| Real-Time Bandwidth Options | n/a |
| DANL @1 GHz | -172 dBm |
| Phase Noise @1 GHz (10 kHz offset) | -109 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | -109 dBc/Hz |
| Phase Noise @1 GHz (1 MHz offset) | -136 dBc/Hz |
| Overall Amplitude Accuracy | ±0.27 dB |
| TOI @1 GHz (3rd Order Intercept) | +18 dBm |
| Option | Frequency range DC coupled |
Frequency range AC coupled |
|---|---|---|
| Option 503 | 10 Hz to 3.6 GHz | 10 MHz to 3.6 GHz |
| Option 507 | 10 Hz to 7 GHz | 10 MHz to 7 GHz |
| Option 513 | 10 Hz to 13.6 GHz | 10 MHz to 13.6 GHz |
| Option 526 | 10 Hz to 26.5 GHz | 10 MHz to 26.5 GHz |
| Option 532 | 10 Hz to 32 GHz | N/A |
| Option 544 | 10 Hz to 50 GHz | N/A |
| Frequency band | LO multiple (N) | Frequency range |
| 0 | 1 | 10 Hz to 3.6 GHz |
| 1 | 1 | 3.5 GHz to 7 GHz |
| 1 | 1 | 3.5 GHz to 8.4 GHz |
| 2 | 2 | 8.4 GHz to 13.6 GHz |
| 3 | 2 | 13.5 GHz to 17.1 GHz |
| 4 | 4 | 17 GHz to 26.5 GHz |
| 5 | 4 | 26.4 GHz to 34.5 GHz |
| 6 | 8 | 34.4 GHz to 44 GHz |
