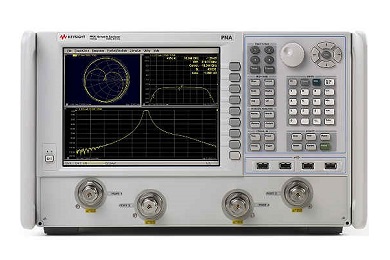

Keysight N5224A PNA Microwave Network Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- Applications include material measurements, signal integrity measurements, and millimeter-wave measurements. Transmission line and free space, arch reflectivity, resonant cavity, and coaxial probe are available as options.
Key Features
- Outstanding measurement integrity leads to better designs
- Get the best accuracy with S-parameter measurements
- Customizable to one's preferred level of performance
- Highest performing microwave network analyzer in the industry
- Max frequency 43.5 GHz, dynamic range 127 dB, output 13 dBm
| Frequency range | Dynamic range Option 200, 400 |
Dynamic range Option 201, 401 |
Dynamic range Option 217, 219, 417, 419 |
|
|---|---|---|---|---|
| 10 MHz to 50 MHz | 82 db | 82 dB | 80 dB | |
| 50 MHz to 100 MHz | 98 dB | 98 dB | 96 dB | |
| 100 MHz to 250 MHz | 108 dB | 108 dB | 106 dB | |
| 250 MHz to 500 MHz | 115 dB | 115 dB | 113 dB | |
| 500 MHz to 1 GHz | 119 dB | 118 dB | 117 dB | |
| 1 GHz to 2 GHz | 127 dB | 127 dB | 125 dB | |
| 2 GHz to 3.2 GHz | 127 dB | 127 dB | 125 dB | |
| 3.2 GHz to 10 GHz | 127 dB | 127 dB | 125 dB | |
| 10 GHz to 13.5 GHz | 127 dB | 127 dB | 125 dB | |
| 13.5 GHz to 16 GHz | 127 dB | 127 dB | 125 dB | |
| 16 GHz to 20 GHz | 127 dB | 127 dB | 124 dB | |
| 20 GHz to 24 GHz | 127 dB | 127 dB | 124 dB | |
| 24 GHz to 26.5 GHz | 127 dB | 127 dB | 124 dB | |
| 26.5 GHz to 30 GHz | 123 dB | 122 dB | 119 dB | |
| 30 GHz to 32 GHz | 123 dB | 121 dB | 117 dB | |
| 32 GHz to 35 GHz | 123 dB | 122 dB | 119 dB | |
| 35 GHz to 43.5 GHz | 118 dB | 117 dB | 112 dB | |
| For detailed specifications please see: Keysight N5224A Data Sheet | ||||
