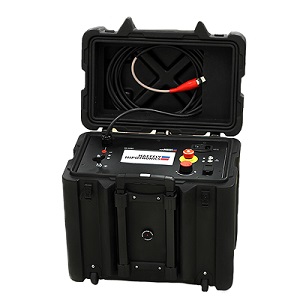

Hipotronics 880PL-DC Hipot Tester

Hipotronics 880PL-DC Hipot Tester
  • Features & specifications

  • DC hipot tests up to 80 kV
  • Lightweight (57lbs.) rugged design for field use
  • Measures output voltage, leakage current, insulation resistance, and polarization index
  • Adjustable test parameters such as target voltage, maximum leakage, ramp rate, and dwell time
  • Recorded test results and data transfer via USB 2.0
  • 7" color, touch screen display with adjustable brightness
  • Full-wave voltage multiplier
  • Safe operation with interlock, emergency stop, and battery backup for display meters if input power is lost
  • Internal discharge solenoid

General Specifications
Applications DC Hipot testing of Cables, Transformers, Switchgear, Motors, Generators, and other Electrical Apparatus
Input Power 90 - 264VAC, 45 - 65Hz, 900VA
Output Voltage 400 V to 80 kV DC
Output Current 10 mA
Polarity Negative output, positive ground
DUT Insulation Resistance 10 kΩ to 40 GΩ
Dimensions 19.45"L X 13.7"W X 20"H
Weight Weight: 57 lbs
Included with 880PL-DC
  • 25 ft. HV Output Cable with Clamp
  • 25 ft. HV Return Cable with Clamp
  • 25 ft. HV Ground Cable with Clamp
  • 15 ft. HV Ground Cable with Clamp
  • 6 ft. Input Power Cord
  • Interlock Plug
  • Interlock Hand-Switch
  • Operations Manual
  • Calibration Certificate
