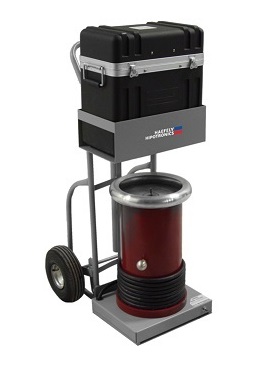

Hipotronics 100HVT 100 kV AC Hipot Tester

Hipotronics 100HVT 100 kV AC Hipot Tester
  • Features & specifications

  • Test bucket trucks, aerial platforms, vacuum bottles, vacuum interrupters, and switchgear
  • Has environmentally friendly FR3TM transformer oil
  • Zero start interlock
  • Compact portable hand cart design
  • Single end grounded high voltage test transformer
  • Separate guard and return
  • Metering accuracy ± 2% full scale
  • High voltage divider
  • Triple range voltage and current meters
  • Fast acting overload circuit breaker
  • External interlock provision

General Specifications
Applications The HVT Series AC hipot testers are an economical solution to AC field-testing of bucket trucks, aerial platforms, vacuum interrupters, breakers, switchgear, and other electrical apparatus
Benefits This instrument is ideal for field testing applications. It features minimal setup time with a simple control panel as well as the added safety of the Zero Start and external interlock which prevent high voltage from being energized until the operator is ready. It meets the ANSI/SIA A92.2 test specifications.
Input Voltage & Frequency Model 100HVT-A for 120V/60Hz input
Model 100HVT-B for 230V/50Hz input
Output Voltage 0 - 50 kV AC
0 - 100 kV AC
Output Current 50 mA (100 kV Tap)
100 mA (50 kV Tap)
Metering Accuracy ± 2% of full scale
Voltage Divider Location External
Dimensions 17.4"W x 31.9"H x 14.5"D (including handcart)
Weight Net weight: 240 lbs.
Shipping weight: 306 lbs.
